How to add animated emotes

Emotes are global special actions that can be applied to any avatar and their purpose is to enable a more expressive emotional state of the avatar (e.g. to enhance an angry expression we suggest using the Fire Emote). Emotes are triggered through keybinds.

An Emote is a container item that can include any other Animaze item such as: Particle Systems (our core use so far), Lights (still only 4 will be applied on the avatar), 3D props and sounds.

When triggered an emote will be temporarily attached to the avatar, with options to follow or not the avatar movement and options to select specific skeletal joints to attach to.

An emote can be customized and configured using the following options:

1. attach Particle Systems, Lights, 3D Props and/or Sounds items through the Editor's Hierarchy Panel

2. duration of each attached component/item of the emote

3. the lifetime of an emote

4. make the emote attach to a certain skeletal joint

5. make follow the avatar movement or not

Let’s create a Fire Emote, which will include a few Particle Systems:

1. Create a texture atlas (.png format) – an image containing multiple smaller images of the same item. The easiest way to make a texture atlas is to use Timeline in Photoshop and make frame by frame drawing. We used a 6x6 tiles image:

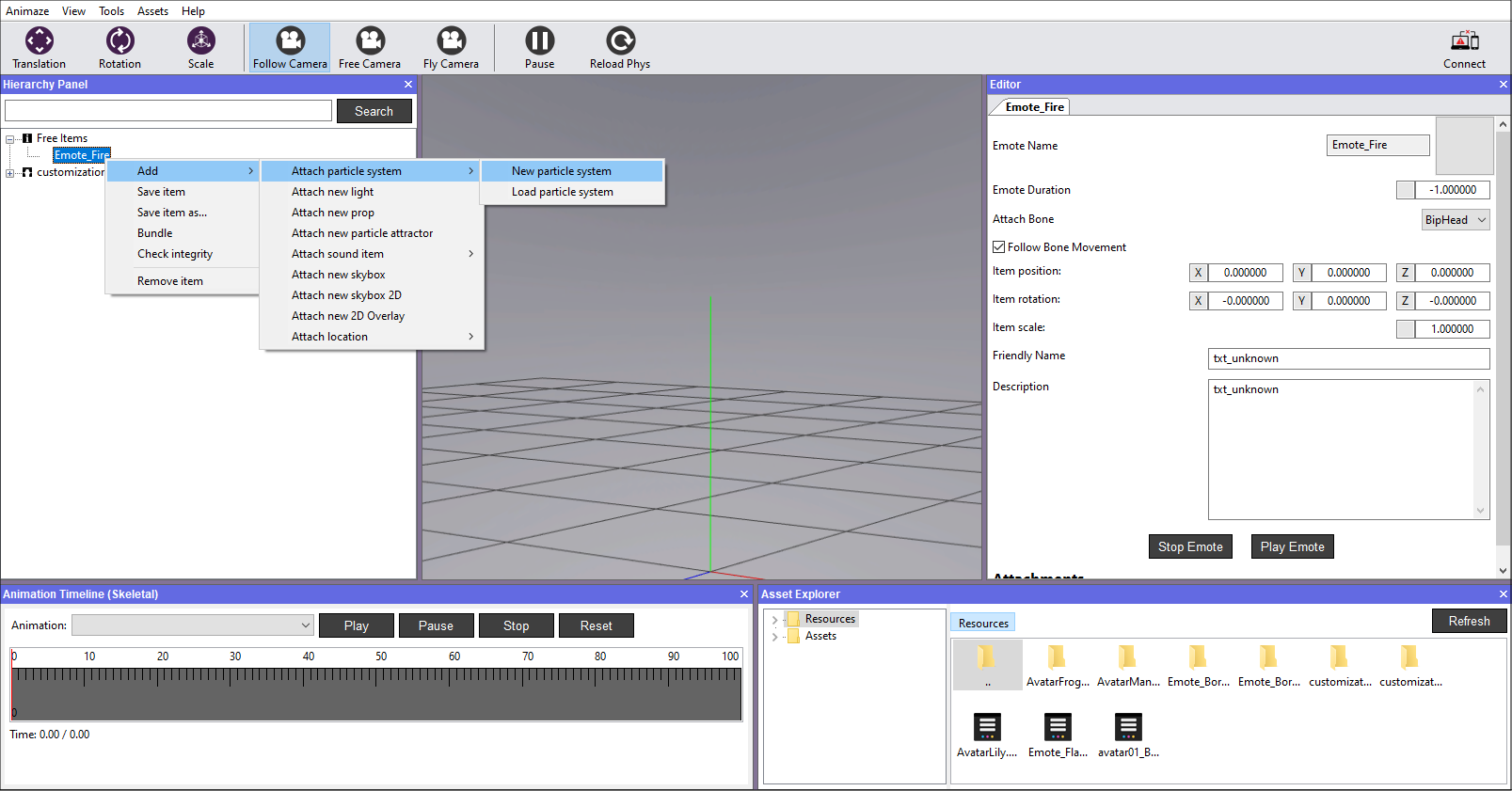

2. Open the Animaze Editor, right-click in blank space in the Hierarchy Panel, select Add Emote and further select New Emote. You will be prompted to name it, we suggest using “Emote_Name”

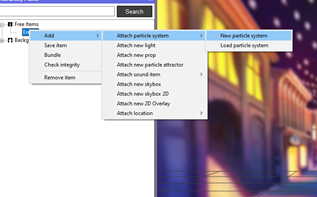

3.       Right-click on the newly created Emote and select Add > Attach particle system > New particle system. You will be prompted to name it, we suggest using “Emote_PS”. If you add more particle systems, add numbers in the naming, to be easier to work with them.

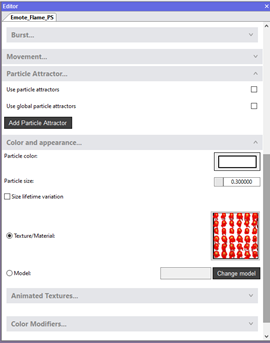

4.       In the Editor Panel to the right, expand the Color and appearance tab, then drag and drop the atlas texture in the Texture Material box. While here, also change the particle size (1 = 1 meter).

5.       Expand the Animated Textures tab, tick Use Animated Texture, set the tile numbers for Width & Height, tick Use Smooth Frame Blending and adjust the FPS, if needed.



6.       In the Generation and Lifetime tab:

a.       set the emitter type. We used “Point” in our Fire example.

b.       set particles generated per second to 1

c.       set Particle lifetime. We set it to 3

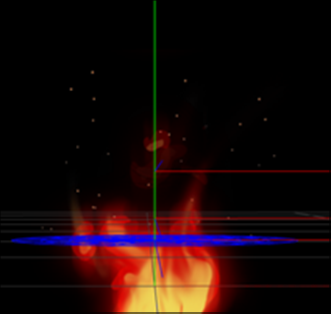

We added additional particles for a more realistic display of the flame, see the fire sparks in the image below:
To obtain this you need to take the same steps as above, but instead of a tiled image, you will be using a single layer image (no tiles):

Tick the Size lifetime variation and set the size values:

The emitter type for this one is set to Circle. Adjust the scale and position as desired. The maximum number of particles is 20, while the particles generated per second is 10, adjust these values as desired for your use case.

Good luck! This is an amazing feature!!!
